Emulsified Vegetable Oil for In Situ Bioremediation
Newman Zone
A Balance of Fast- and Slow-Release Electron Donors
Newman Zone is Proven –
Newman Zone was the first EVO bioremediation product on the market and tens of millions of pounds have been successfully used around the world. Newman Zone is a blend of fast- and slow-release electron donors proven effective in treating chlorinated solvents and other contaminants.
Newman Zone 55 and 60E Comparison
| Feature | Newman Zone 55 | Newman Zone 60E |
|---|---|---|
| Fast-Release Donor | Lactate-based | Ethanol-based preservative |
| Fermentable Content | 65% by weight | 72% by weight |
| Vegetable Oil Content | 55% by weight | 60% by weight |
| Hydrogen Release Profile | Balanced (lactate + slow-release oil) | Balanced (ethanol + slow-release oil) |
| Performance Profile | Fast biostimulation and sustained long-term treatment | Fast biostimulation and sustained long-term treatment |
| Storage Characteristics | Requires chilled storage for long shelf life | No refrigeration required; ethanol stabilizes product |
| Availability | Manufactured and sold in the US | Manufactured in Brazil and sold in South America, South Africa and Europe |
Why Newman Zone
Newman Zone is a cost-effective electron donor trusted for its consistent performance and long-term reliability in the field. Developed for practical use under real site conditions, it provides a dependable approach to in situ treatment across a wide range of applications.
Balanced, Long-Lasting Performance
Combines rapid microbial stimulation with long-term hydrogen release to support sustained, in situ treatment over time.
Industry-Leading Droplet Size
Our EVO oil-in-water emulsion has sub-micron droplets that maximize mobility in low permeability soils, including silts and clays.

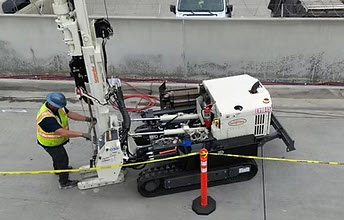

Flexible Application Methods
- Direct push injection
- Injection wells
- Recirculation systems
- Application to excavated source areas prior to backfilling
Proven Technology
Decades of Real-World Results: Since its initial production in 2002, millions of pounds have been applied at thousands of sites worldwide.
Technical Details
How It Works
- Fast-release donor (lactate): Rapidly creates anaerobic conditions and stimulates microbial growth within hours
- Slow-release donor (vegetable oil): Ferments over time to produce hydrogen and volatile fatty acids
- Result: Sustained biological activity that supports complete contaminant breakdown
Soybean oil EVO is an ideal slow release electron donor for chlorinated solvent bioremediation. EVO releases hydrogen for several years with a single injection event.
SLOW RELEASE ELECTRON DONORS
- Newman Zone 55 Small Droplet EVO – Factory-made emulsions with oil droplets under one micron for maximum mobility. EVO formulations have 65% fermentable content and a minimum of 55% soybean oil by weight and 4% fast release donor (lactate)
- Newman Zone 60 Small Droplet EVO – Factory made emulsions with oil droplets under one micron for maximum mobility. EVO formulations have 72% fermentable content and 60% soybean oil by weight and 6% preservative (ethanol).
Application & Handling
Newman Zone 55 is designed for flexible field application:
- Diluted prior to injection (typically ≤5% oil by volume)
- Low viscosity after dilution—pumps easily like water
- Suitable for:
- Direct push injection
- Injection wells
- Recirculation systems
- Excavation/backfill applications
Common treatment approaches include source area grids and permeable reactive barriers.
Product Characteristics
- Oil-in-water emulsion with 55%-60% soybean oil by weight
- Submicron droplet size (approx. 0.15–0.60 microns)
- White, opaque liquid
- Food-grade ingredients

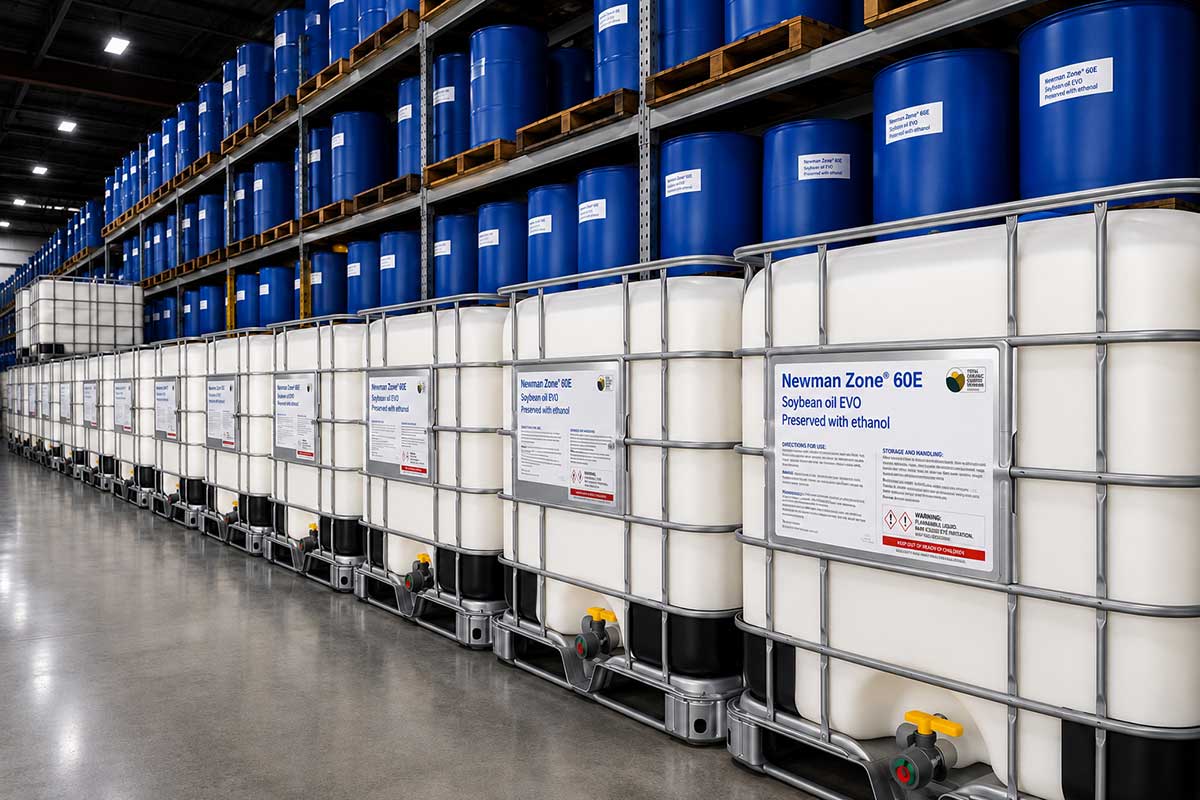

Packaging & Storage
Available in:
- Newman Zone 55 15-gallon mini-drums (110 pounds net)
- Newman Zone 55 55-gallon drums (420 pounds net)
- Newman Zone 55 275-gallon totes (2,100 pounds net)
- Newman Zone 60E 20-liter (18 kilos net) and 50-liter cans (45 kilos net)
- Newman Zone 60E 200-liter drums (190 kilos net)
- Newman Zone 60E 1000-liter totes (970 kilos net)
Shelf life:
- Newman Zone 55 - five years in chilled storage
- Newman Zone 55 four months without refrigeration
- Newman Zone 60E – ethanol preserved for years of storage without refrigeration
USDA Certified Biobased
Newman Zone 55 is formulated with food-grade components and does not require special handling under normal use conditions.
It is also a USDA Certified Biobased Product, supporting sustainable remediation practices.
Need Help Selecting the Right Product?
Talk with our team about your site conditions, contaminants, and treatment approach to determine the right product.
